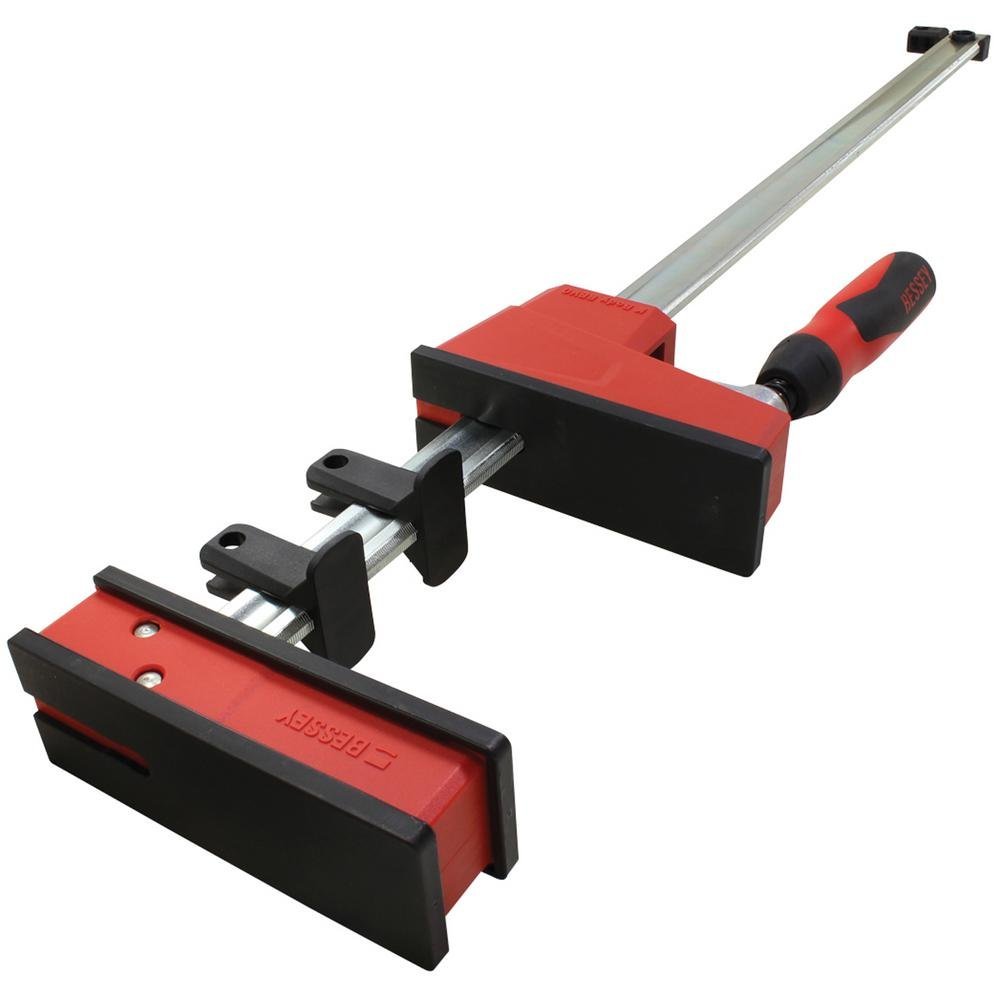

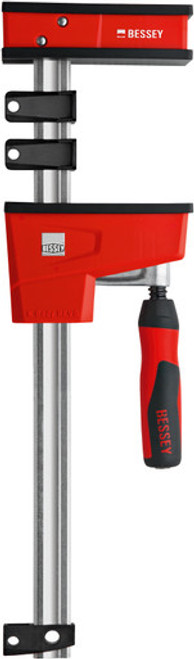

Bessey K-Body REVOlution Parallel Clamp 60 Inch

The Bessey K-Body REVOlution Parallel Clamp 60 Inch is built for serious woodworking and panel assembly tasks. With its large parallel-jaw design, cold-drawn steel bar, replaceable 2″ × 5¾″ pressure pads, and ergonomic handle with integrated hex socket, this clamp delivers consistent, square clamping every time.

Rated at 1,700 lb nominal clamping force and usable up to 2,200 lb working load, this clamp is equally suited for cabinetry, hardwood glue-ups, furniture building, and large-format assemblies. The throat depth of 3¾″ (95 mm) allows for deep penetration in thicker workpieces.

The clamp is designed to stay put while you position your work thanks to its refined sliding head mechanism. With the ability to convert to a spreader without tools, and compatibility with a wide range of accessories, the Bessey K-Body REVOlution Parallel Clamp 60 Inch provides long-term value for serious woodworkers and professionals.

Key Features of the Bessey K-Body REVOlution Parallel Clamp 60 Inch:
True 90° parallel‐jaw clamping with precision alignment
Nominal clamping force: 1,700 lb; Working load limit: 2,200 lb
Throat depth: 3¾″ (95 mm) for deep clamping
Large 2″ × 5¾″ replaceable pads for even pressure distribution
Ergonomic two-component handle with steel hex socket for added torque (up to 17 Nm)
Cold-drawn steel bar and reinforced housing for durability
Converts to clamping or spreading mode without tools
Lifetime warranty ensures long-term support

Specs:
Model: KRE3560
Clamping Capacity: 60″ (1524 mm)
Throat Depth: 3¾″ (95 mm)
Nominal Clamping Force: 1,700 lb (≈ 7.6 kN)
Working Load Limit: 2,200 lb (≈ 9.8 kN)
Spreading Capacity: approx. 10″ to 63⅜″ (255 mm to 1610 mm)
Approximate Weight: 9.5 lb (≈ 4.3 kg)
