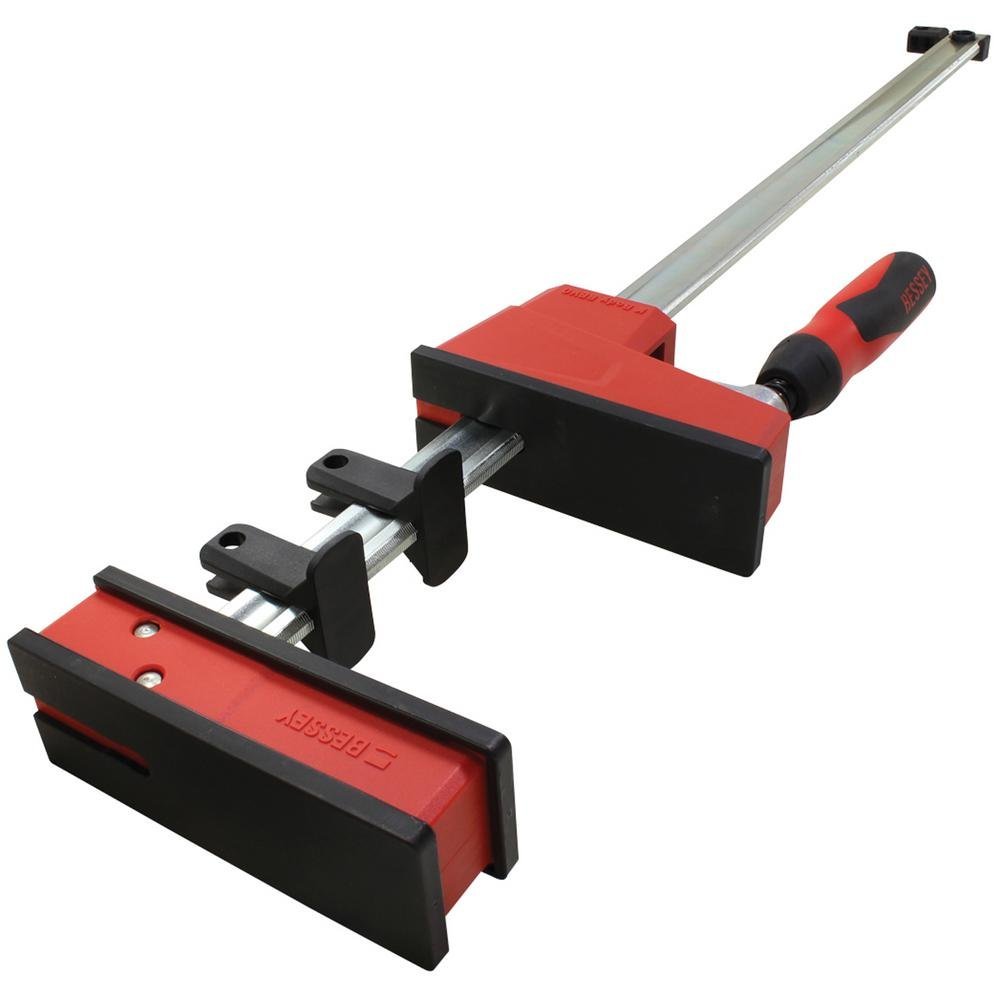

Bessey K-Body REVOlution Parallel Clamp 31 Inch

The Bessey K-Body REVOlution Parallel Clamp 31 Inch (Model KRE3531) is engineered for heavy-duty woodworking applications. With jaws that clamp at a true 90° angle to the steel rail and a cold-drawn steel frame, it delivers long-lasting durability and consistent performance.

This 31″ capacity model features a throat depth of 3¾″, a nominal clamping force of 1,700 lbs, and a working load limit up to 2,200 lbs.

The ergonomic two-component handle includes a 6 mm steel hex socket for additional torque (17 Nm), making tough clamping jobs easier. The jaw pads are large and replaceable, and rail-protection pads prevent damage to workpieces.

Perfect for heavy glue-ups, cabinetry, door and window assembly, and demanding woodworking tasks, the Bessey K-Body REVOlution Parallel Clamp 31 Inch gives you precision and power.

Key Features of the Bessey K-Body REVOlution Parallel Clamp 31 Inch:
1,700 lb nominal clamping force, 2,200 lb holding capacity
90° clamping jaw alignment for clean, square clamping
Cold-drawn steel rail for durability and consistent performance
3¾″ (95 mm) throat depth suitable for deep panels
Ergonomic handle with built-in hex socket for up to 17 Nm torque
Replaceable large jaw pads (2″ × 5¾″) and rail protection components
Converts to spreading mode tool-free

Specs:
Model: KRE3531 (31″ capacity)
Throat Depth: 3¾″ (95 mm)
Nominal Clamping Force: 1,700 lbs (≈7.6 kN)
Working Load Limit: 2,200 lbs (≈9.8 kN)
Minimum Jaw Opening: approximately 10½″
Maximum Jaw Opening: approximately 36″
Weight: approx. 6.86 lbs (≈3.11 kg)
